History Embedding

Embed an environment into a more complex representation of state/observation-action histories

Examples

import numpy as np
import matplotlib.pyplot as plt

from pyCRLD.Environments.SocialDilemma import SocialDilemma
from pyCRLD.Environments.EcologicalPublicGood import EcologicalPublicGood

from pyCRLD.Agents.StrategyActorCritic import stratAC
from pyCRLD.Utils import FlowPlot as fp

np.random.seed(42)

from pyCRLD.Environments.HistoryEmbedding import HistoryEmbedded

socdi = SocialDilemma(R=1.0, T=1.2, S=-0.5, P=0.0)
ecopg = EcologicalPublicGood(N=2, f=1.2, c=5, m=-5, qc=0.2, qr=0.1)

Memory-one Prisoner’s Dilemma

With history embedding, we can wrap the standard normal form social dilemma envrionment into one, where the agents condition their action on the actions of the last rounds

memo1pd = HistoryEmbedded(socdi, h=(1,1,1))

which has effectively a state set with the four elements

memo1pd.Sset

['c,c,.|', 'c,d,.|', 'd,c,.|', 'd,d,.|']

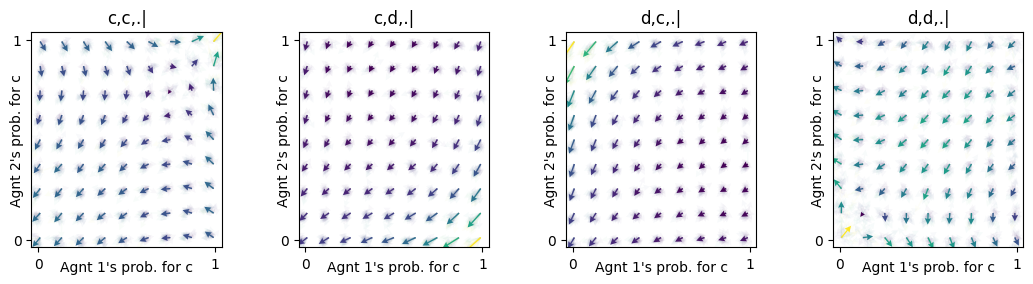

As you can see in the flow plots, this opens the possiblity for cooperation:

mae1 = stratAC(env=memo1pd, learning_rates=0.1, discount_factors=0.9)
x = ([0], [0,1,2,3], [0])
y = ([1], [0,1,2,3], [0])
ax = fp.plot_strategy_flow(mae1, x, y, flowarrow_points=np.linspace(0.01 ,0.99, 9), NrRandom=32,
                           conds=mae1.env.Sset)

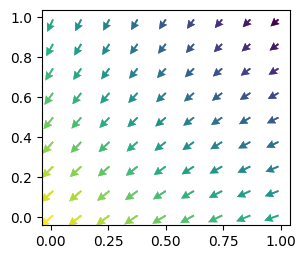

In contrast to the case where agents do not react to the actions of the past round. Here, the only strategy the agents learn is defection:

np.random.seed(42)
mae0 = stratAC(env=socdi, learning_rates=0.1, discount_factors=0.9)
x = ([0], [0], [0])
y = ([1], [0], [0])
ax = fp.plot_strategy_flow(mae0, x, y, flowarrow_points=np.linspace(0.01 ,0.99, 9), NrRandom=32)

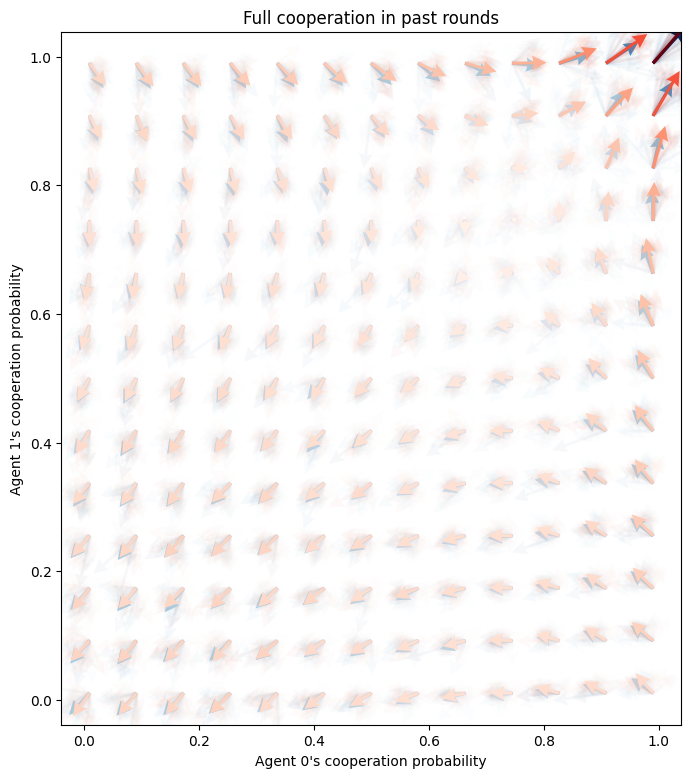

What is the effect of having longer action histories?

hlen = 2
memoXpd = HistoryEmbedded(socdi, h=(1, hlen, hlen))
print( len(memoXpd.Sset) )

maeX = stratAC(env=memoXpd, learning_rates=0.1, discount_factors=0.9)

fig, ax = plt.subplots(1,1, figsize=(8,9))
faps = np.linspace(0.01 ,0.99, 13)
x = ([0], [0], [0])
y = ([1], [0], [0])
fp.plot_strategy_flow(mae1, x, y, flowarrow_points=faps, NrRandom=32, cmap="Blues", axes=[ax])
fp.plot_strategy_flow(maeX, x, y, flowarrow_points=faps, NrRandom=32, cmap="Reds", axes=[ax]);
ax.set_xlabel("Agent 0's cooperation probability")
ax.set_ylabel("Agent 1's cooperation probability")
ax.set_title("Full cooperation in past rounds");

The longer action histories give additional force to mutual cooperation when the agents have cooperated in the past rounds and are close to cooperation. This suggests the hypothesis that longer action histories are beneficial for cooperation to be learned. However, more simulation would be needed to answer this question.

Memory-one Ecological Public Good

What is the effect of condition actions also on the past actions in the ecological public goods envrionment?

ecopg1 = HistoryEmbedded(ecopg, h=(1,1,1))
ecopg1.Sset

['c,c,g|',
 'c,c,p|',
 'c,d,g|',
 'c,d,p|',
 'd,c,g|',
 'd,c,p|',
 'd,d,g|',
 'd,d,p|']

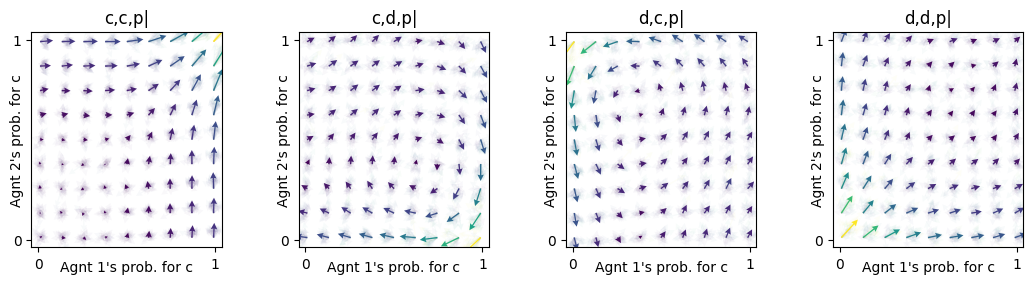

Visualizing the flow of learning in the prosperous state:

mae1 = stratAC(env=ecopg1, learning_rates=0.1, discount_factors=0.9)
x = ([0], [1,3,5,7], [0])
y = ([1], [1,3,5,7], [0])
ax = fp.plot_strategy_flow(mae1, x, y, flowarrow_points=np.linspace(0.01 ,0.99, 9), NrRandom=32,
                           conds=np.array(mae1.env.Sset)[[1,3,5,7]])

This flow has similarites to the flow of the memory-1 Prisoner’s Dilemma above, yet with more tendency toward cooperation. This is expected, since the ecological public good without memory-1 has also more tendency towards cooperation.

Implementation

Histories

A history specification determines which realizations of the past the agents will conditions their actions on.

A history specification h is an iterable of length 1+N. The first value indicates how many time steps of the state observation the agents will use to conditions their actions on. The remaining values indicate how many actions of each agent are used.

source

_get_all_histories

 _get_all_histories (env, h, attr='Z')

	Type	Default	Details
env			An environment
h			A history specification
attr	str	Z

The default history specification is h=(1,0,0). Each agent observes information about the previous state, but none about the other agents.

_get_all_histories(socdi, h=(1,0,0))

_get_all_histories(ecopg, h=(1,0,0))

Each element of these lists is one history. The '.' indicates a dummy value for the non-observable actions. As you can see, here, the actions come before the state information - in contrast to the history specification h. You can think of time traveling from left to right in each history. First the agents choose their joint action, than they observe some state information, after which they choose another joint action. And so on, and so forth.

For example, the often used memory-one social dilemmas can be obtained by

_get_all_histories(socdi, h=(0,1,1))

Here, the information about the environment is discarded, indicated by the '.'.

But the action-history lengths need not be identical,

_get_all_histories(socdi, h=(0,1,2))

Here, each history contains six elements, since it spans two time steps, and each time step is represented by one element for each agent’s action plus one element for the environment.

Of course, histories can be obtained for any environment.

_get_all_histories(ecopg, h=(2,1,1))

With _get_all_histories we simply iterate through all state and action indicies. However, we are not checking whether a history is actually possible given the transition probabilities of the envrionment.

source

_hist_contains_NotPossibleTrans

 _hist_contains_NotPossibleTrans (env, hist:Iterable)

Checks whether the history contains transitions which are not possible with the environment’s transition probabilities.

	Type	Details
env		An environment
hist	Iterable	A history
Returns	bool	History impossible?

For example, in the prosperous state 1 of the ecological public good, when both agents choose the cooperative action 0, there is no chance to leave the propserous state and enter the degraded state 0.

_hist_contains_NotPossibleTrans(ecopg, hist=('.', '.', 1, 0, 0, 0))

Thus, any history that contains this transition is not needed.

Yet, if only one agent chooses the defective action 0, a transition to the degraded state becomes possible and corresponding histories cannot be discarded.

_hist_contains_NotPossibleTrans(ecopg, hist=('.', '.', 1, 1, 0, 0))

_hist_contains_NotPossibleTrans(ecopg, hist=('.', '.', 1, 0, 1, 0))

source

StateActHistsIx

 StateActHistsIx (env, h)

*Returns all state-action histories (in indices) of env.

h specifies the type of history. h must be an iterable of length 1+N (where N = Nr. of Agents) The first element of h specifies the length of the state-history Subsequent elements specify the length of the respective action-history*

For example, the memory-one social dilemmas is obtained by

StateActHistsIx(socdi, h=(0,1,1))

which is identical to

_get_all_histories(socdi, h=(0,1,1))

since all histories are actually possible in the environment.

However, in our ecological public good example, this is not the case:

len(StateActHistsIx(ecopg, h=(2,1,1)))

len(_get_all_histories(ecopg, h=(2,1,1)))

Depending on the environment, filtering out impossible histories can lead to a significant performance boost.

source

hSset

 hSset (env, h)

String representation of the histories.

	Details
env	An environment
h	A history specificaiton

For example,

hSset(socdi, h=(1,1,1))

hSset(ecopg, h=(2,1,1))

Transitions tensor

source

histSjA_TransitionTensor

 histSjA_TransitionTensor (env, h)

*Returns Transition Tensor of env with state-action history specification h.

h must be an iterable of length 1+N (where N = Nr. of Agents) The first element of h specifies the length of the state-history Subsequent elements specify the length of the respective action-history*

For example,

histSjA_TransitionTensor(socdi, h=(0,1,1)).shape

histSjA_TransitionTensor(ecopg, h=(2,1,1)).shape

Reward tensor

source

histSjA_RewardTensor

 histSjA_RewardTensor (env, h)

*Returns Reward Tensor of env with state-action history specification h.

For example,

histSjA_RewardTensor(socdi, h=(1,1,1)).shape

histSjA_RewardTensor(ecopg, h=(1,1,1)).shape

Partial observation and environmental uncertainty

Note: These elements are useful for enviroments with state uncertainty or likewise, partial observability. Such are not yet available in this respository.

source

ObsActHistsIx

 ObsActHistsIx (env, h)

*Returns all obs-action histories of env.

h specifies the type of history. h must be an iterable of length 1+N (where N = Nr. of Agents) The first element of h specifies the length of the obs-history Subsequent elements specify the length of the respective action-history

Note: Here only partial observability regarding the envrionmental state applies. Additional partial observability regarding action is treated seperatly.*

ObsActHistsIx(socdi, h=(1,1,1))

source

hOset

 hOset (env, h)

hOset(socdi, h=(1,1,1))

source

histSjA_ObservationTensor

 histSjA_ObservationTensor (env, h)

Returns Observation Tensor of env with state-action history h[iterable]

histSjA_ObservationTensor(socdi, h=(1,1,1))

Environment wrapper

source

HistoryEmbedded

 HistoryEmbedded (env, h)

*Abstract Environment wrapper to embed a given environment into a larger history space

h must be an iterable of length 1+N (where N=Nr. of Agents) The first element of history specifies the length of the state-history. Subsequent elements specify the length of the respective action-history*

	Details
env	An environment
h	History specification
